ClearView fence manufacturer & installer

Clear view fence. Built nationwide.

ClearView fencing for South African homes, estates, businesses and industrial sites. A clear view straight through the boundary, in anti-climb, anti-cut welded mesh. Compare the options, then request supply-only or installed pricing.

3.0 m panel width1.8 · 2.1 · 2.4 · 3.0 m heights3 aperture options
Silver welded mesh with folded horizontal sections beside a grass boundary
A complete fencing system

Choose the right clear view fence for the site — not just a panel.

Tell us what the perimeter must protect, where the site is and how the fence must perform. We then help you choose the right aperture, wire, height, posts, coating, gates and security additions as one coordinated system.

  • Commercial and industrial boundaries
  • Schools and public facilities
  • Residential estates and developments
  • Utilities, reservoirs and infrastructure
  • Mines, factories and controlled-access sites

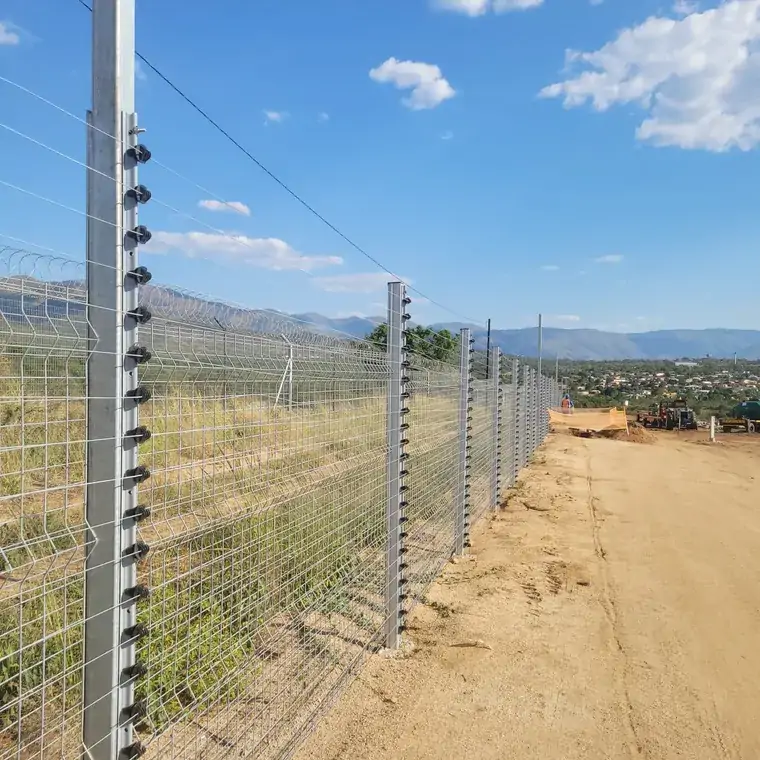

Silver mesh fence posts fitted with electric-fence insulators beside a dirt track
Real Capstone product and installation photography.

Clear view fence, ClearView fencing, see-through fencing and welded mesh fencing all describe this type of boundary. The important differences are the aperture, wire, height, posts and finish specified for your site. Compare the available specifications, review pricing factors or ask us to help you choose.

The basics

What is a clear view fence?

A clear view fence is a rigid security fence made from welded steel mesh panels fixed to steel posts. The wires are welded close together, so the panel is hard to climb and hard to cut, yet you can see straight through it. It is also called clearview fencing, see-through fencing, anti-climb mesh fencing and, for the tightest pattern, 358 mesh.

Capstone manufactures the panels 3.0 m wide and 1.8 m, 2.1 m, 2.4 m or 3.0 m high, with 76 × 12 mm, 76 × 25 mm or 76 × 50 mm apertures. The 76 × 12 mm aperture is the pattern the industry often calls 358 mesh.

Benefits of clear view fencing

You can see through it

Guards, neighbours and CCTV cameras can see both sides of the boundary, so there is nowhere to hide along the fence line.

Hard to climb

The small openings give little grip for fingers and feet. The 76 × 12 mm aperture is the tightest of the three.

Hard to cut

Closely spaced welded wires leave little room for cutting tools, and 4 mm wire options are available for higher-security lines.

Rigid and neat

Flat 3.0 m panels on steel posts give a straight, uniform boundary. On slopes the panels are stepped.

A finish for the site

Plain galvanised, ZincAlu-dipped, powder-coated and PVC finishes are available, chosen for exposure and appearance.

Works with other security

Spikes, razor coil, flatwrap and electric fencing can be carried on extended posts, with an anti-dig detail below the panel.

Real South African installations

See clear view fencing on site.

Capstone project photography showing completed fence lines, posts, gates, finishes and real site conditions.

Technical clarity

Clear view fence specifications, in plain language.

These figures come from Capstone’s current technical sheets. We confirm the final configuration, manufacture and installation scope in your project quotation.

Apertures76 × 12 mm · 76 × 25 mm · 76 × 50 mm, each horizontal or vertical
Panel format3.0 m panel width · 1.8 m height · 2.1 m height · 2.4 m height · 3.0 m height
Wire options3 mm vertical with 3 mm horizontal · 4 mm vertical with 3 mm horizontal · 4 mm vertical with 4 mm horizontal
Post systemsEvo Post — 80 mm face × 70 mm back × 70 mm deep · T-Post — 100 × 60 mm nominal profile; wall thickness to be confirmed · Square posts — 76 × 76 mm and 100 × 100 mm
Coating optionsPlain Class A galvanised (pre-welded) · ZincAlu dipped · Powder coated (PPC) · Polyvinyl chloride (PVC)
Fixing detailMesh clamp / fixator with technical screw; final fixing system depends on the selected post and project specification.

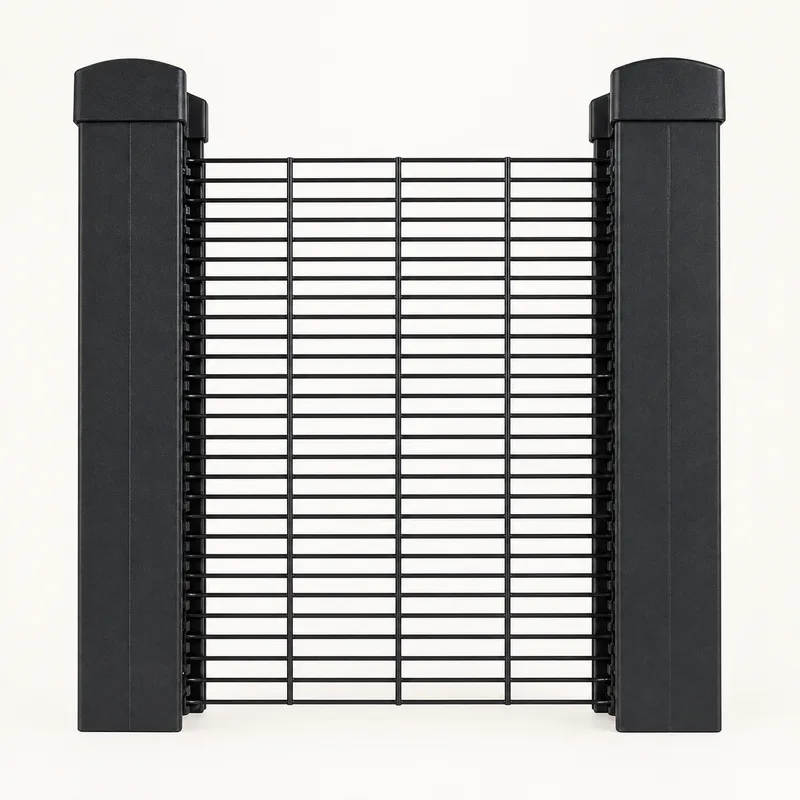

Straightened visualization of the Capstone ClearView sample with capped posts and horizontal mesh

The photograph shows Capstone’s supplied mesh-and-post sample. Full panels are 3.0 m wide; compare the available heights, apertures and post options in the table and the April 2026 source sheet.

Homes, complexes and estates

Residential clear view fencing.

For a house, a townhouse complex or an estate, a clear view fence secures the boundary without closing the property in. You keep your view and your light, and neighbours, patrols and cameras can still see the street side of the fence.

  • Height: residential boundaries usually start from the 1.8 m or 2.1 m panel. The 2.4 m panel suits properties that back onto open land.
  • Finish: powder-coated panels suit street boundaries where appearance matters. The colour is confirmed in your quotation, which helps where a body corporate has rules.
  • Gates: pedestrian gates and sliding or swing driveway gates are quoted with the fence. Automation is a separate item.
  • Extra security: spikes or an electric fence can be added on top, on extended posts.
  • Fixing: posts are planted in concrete, or fixed with base plates on a concrete beam or slab.
Choosing a boundary

Clear view fence, concrete palisade or a wall?

Capstone manufactures both clear view fencing and reinforced concrete palisade. The right boundary depends mainly on whether you need to see through it.

CompareClear view fenceConcrete palisadeSolid wall
View through the boundaryOpen. Cameras and patrols see both sides.Partial, through the gaps between the pales.None. The wall hides both sides.
PrivacyLowModerateHigh
ClimbingSmall apertures give little grip.Solid 1.8 m or 2.4 m concrete pales, with razor coil or flatwrap options on top.Depends on the height and the topping.
MaterialCoated welded steel mesh on steel postsReinforced concrete pales, crossbars and postsConcrete or masonry
Typical sitesEstates, schools, businesses, utilities, mines and factoriesIndustrial yards, depots and long perimeter linesHomes and sites where privacy matters most
Capstone guide priceAbout R900 to R1 500 per metre, supplied and installedAbout R750 to R1 200 per metre, supplied and installedQuoted per site

Guide prices are per site and client and are confirmed only in a written quotation. Read about reinforced concrete palisade fencing.

From first measurement to handover

One team. One coordinated project route.

Installation planning covers line and level, post centres, foundations, terrain, drainage, gates, existing-fence removal, site access and any electric, spike, razor or anti-dig integration.

New fencing across cleared ground beside construction materials01
Your site

Understand the site

We confirm the boundary, access, ground, slopes, services, gates and additional security needs.

Silver welded mesh with folded horizontal sections beside a grass boundary02
Your specification

Agree the system

You receive a clear scope covering height, panels, posts, finish, foundations and project exclusions.

Factory interior visualization with fencing panels and concrete components03
Order preparation

Prepare the order

Components are prepared to the approved quotation and agreed product configuration.

Wide vehicle gate with installers beside the adjoining mesh fence04
Installation & handover

Install and hand over

The team sets out, installs, aligns and inspects the agreed works before handover.

Clear answers before quotation

Clear view fence questions clients usually ask.

Which ClearView aperture should I specify?

Our product range includes 76 × 12 mm, 76 × 25 mm and 76 × 50 mm apertures, horizontal or vertical. The right choice depends on the security risk, required visibility, wire configuration and project budget.

Which panel heights are available?

Our standard panel information covers 1.8 m, 2.1 m, 2.4 m and 3.0 m heights at a 3.0 m panel width. We confirm the available configuration in your project quotation.

Can Capstone supply and install?

Yes. We manufacture, supply, deliver and install ClearView fencing for projects across South Africa. Your quotation confirms the location, programme and exact scope.

Do you publish a price per metre?

Yes, as a guide. Clear view fencing typically ranges from about R900 to R1 500 per metre, supplied and installed. The price for your site depends on height, aperture, wire, posts, coating, foundations, distance, access, ground conditions, gates and added security, and is confirmed in a written quotation.

Is clear view fencing the same as 358 mesh?

358 mesh is the industry name for the tightest clear view pattern, with openings of about 76 × 12 mm. Capstone supplies that aperture as well as 76 × 25 mm and 76 × 50 mm, so you can match the mesh to the security risk and the budget.

Is clear view fencing suitable for a home?

Yes. Residential boundaries usually use the 1.8 m or 2.1 m panel in a powder-coated finish, with pedestrian and driveway gates quoted with the fence. You keep your view while the boundary stays hard to climb.

Can a clear view fence be installed on a slope?

Yes. The panels are rigid, so they are stepped down the slope and the post lengths are chosen to suit. Show the fall of the ground when you ask for a quotation.

Where does Capstone supply and install clear view fencing?

Across South Africa, and in Lesotho, Eswatini, Botswana and Namibia on request. Capstone has branch contacts in Limpopo, Mpumalanga, KwaZulu-Natal, the Eastern Cape and the Western Cape, and a national sales desk that prepares every quotation.
