ClearView fence technical system

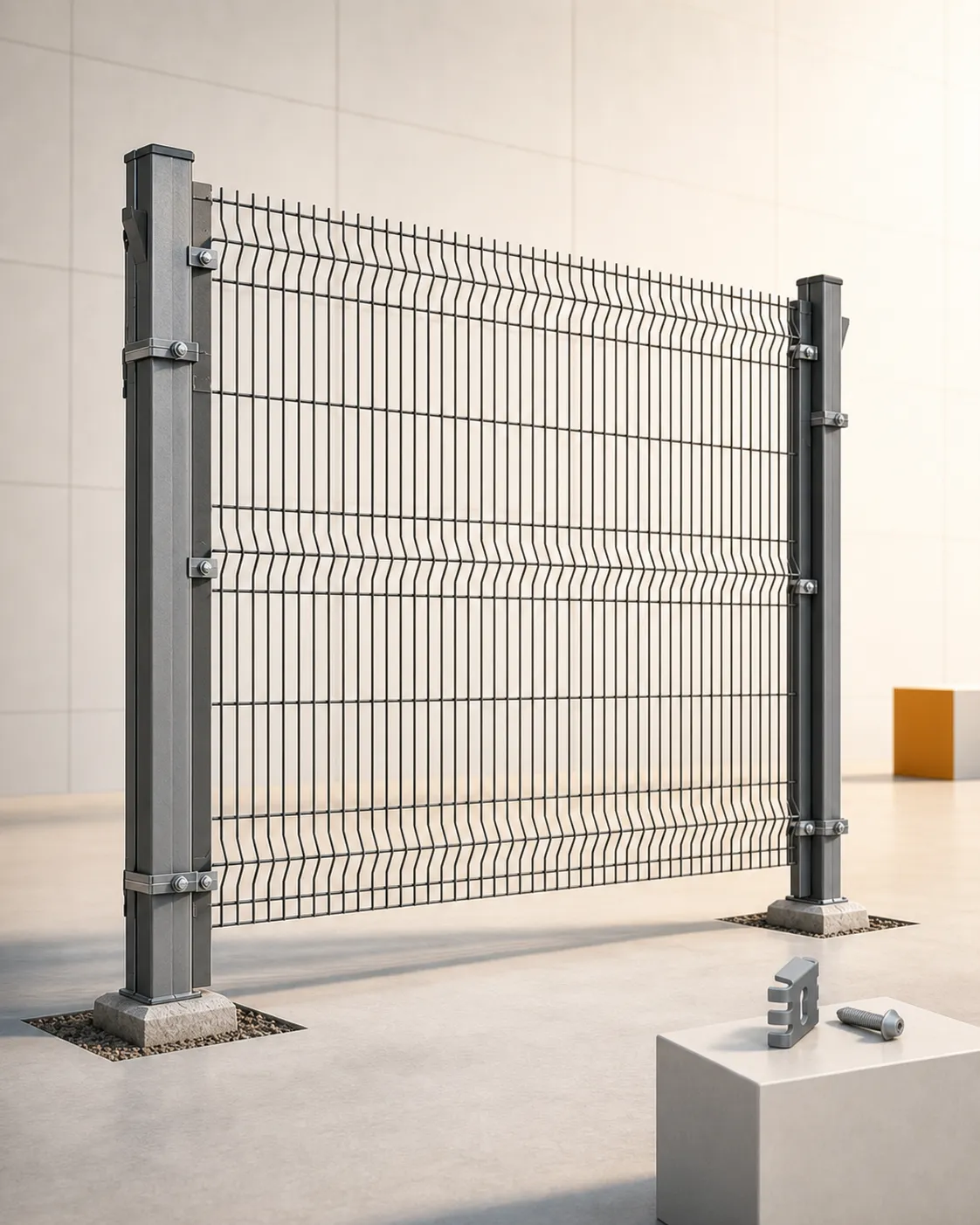

ClearView fence specifications—made visible.

Product photographs, original drawings and technical guidance for procurement teams, contractors and property owners comparing a complete ClearView fence system.

Product + controlled dimensions

See the system, then read the specification.

Start with the panel dimensions and options, then compare the post profiles and fixings. The original T-post assembly drawing identifies the components; it is not a dimensioned elevation of a complete installation.

Straightened visualization of the Capstone ClearView sample with capped posts and horizontal mesh — Product referenceActual ClearView product sample
Mesh, posts and fixings shown together. Use the source-based panel and post breakdown below when specifying the full system.

3 000 mm panel
1.8 / 2.1 / 2.4 m heights
3 aperture options
3 wire options

April 2026 · Posts Profiles and Fence Apertures

Panel sizes, wire and finish options.

These are the options listed in the supplied drawing. Post lengths and panel heights are separate measurements.

Panel width: 3.0 m (3 000 mm)
Panel heights: 1.8 m · 2.1 m · 2.4 m
Mesh apertures: 76 × 12.7 mm · 76 × 25 mm · 76 × 50 mm
Wire combinations: 3 × 3 mm · 3 × 4 mm · 4 × 4 mm
Evo post profile: 80 × 70 mm; detailed Evo sheet gives a 70 mm depth and 45 mm fixator space.
T-post profile options: 100 × 60 mm · 60 × 40 mm. The separate T-post sheet details the 100 × 60 profile.
Square post options: 76 × 76 mm · 100 × 100 mm. The separate square-tube sheet covers 100 × 100 × 3 mm.
Fixing components: Mesh clamp / fixator with technical screw; caps shown in the assembly drawing.

Coating options as listed in the source

ZincAlu finish
Powder Coated (PVC)
Plastic coated (PVC)

The two coating labels containing “PVC” are reproduced as supplied. The quotation should identify the exact coating system being supplied.

Wire-strength wording in the source

Under “Welding Strength”, the sheet records “3mm Wire: Tensility 580” and “4mm Wire: Tensility 493”. It does not state units or a test method, so these are not presented here as certified weld-strength ratings.

Open the panel, aperture and post-options source PDF

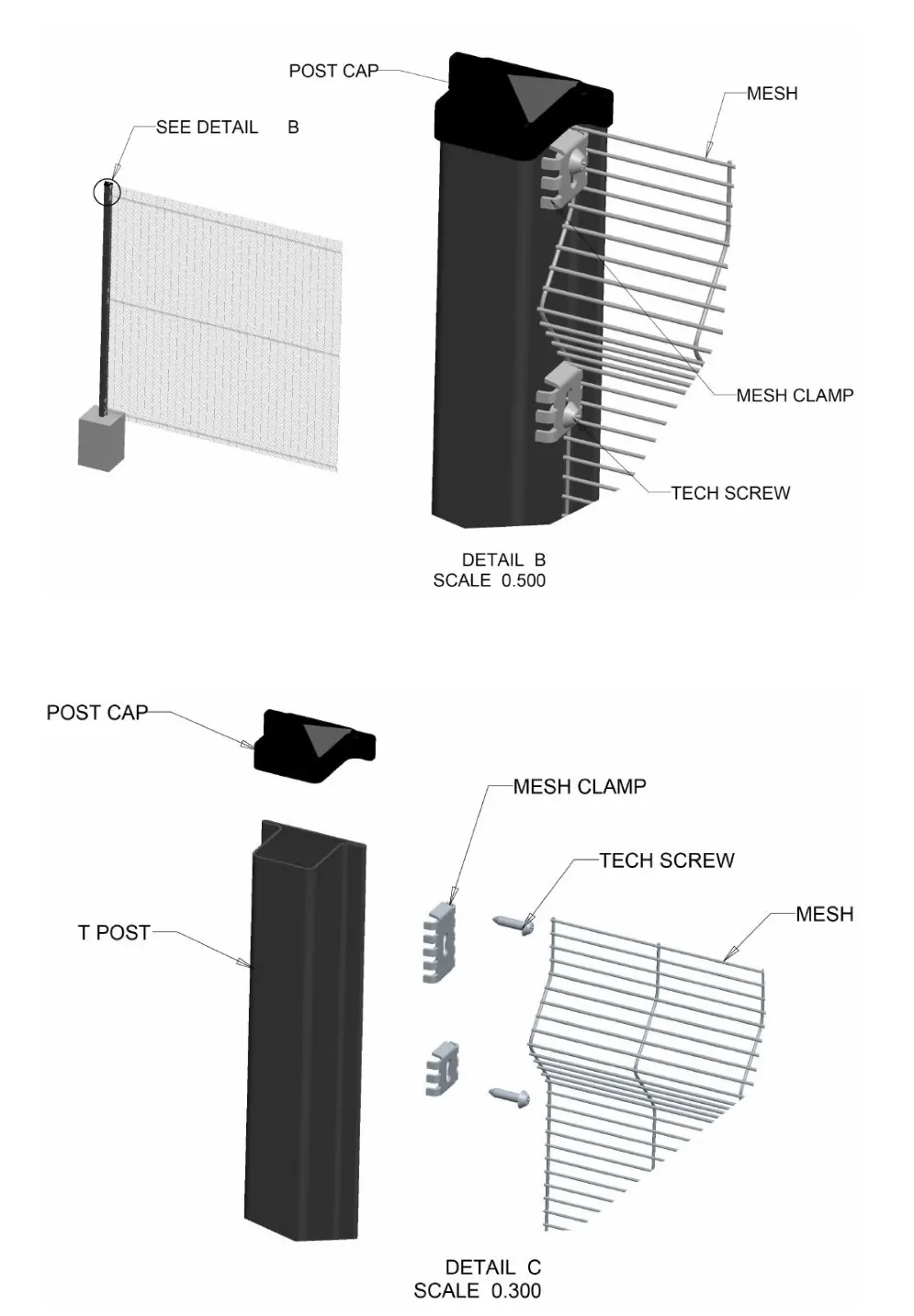

Original T-post assembly drawing identifying mesh, caps, clamps and technical screws — Original assembly detail from Capstone’s T-post document. Final post, embedment, foundation, loading, finish and security details are confirmed in the quotation.

CV / MESH

Panel aperture comparison

3 000 mm panel width

Three documented options

See the aperture difference.

Equal-scale mesh details: each opening is 76 mm across, with a vertical gap of 12.7, 25 or 50 mm. The diagrams show 3 mm wires and a cropped mesh area, not a full panel.

SECURE

76 × 12.7 mm

12.7 mm vertical opening

BALANCED

76 × 25 mm

25 mm vertical opening

OPEN

76 × 50 mm

50 mm vertical opening

Standard heights1 800 mm · 2 100 mm · 2 400 mm

Wire options3 × 3 mm · 3 × 4 mm · 4 × 4 mm

Finish optionsZincAlu · powder · PVC

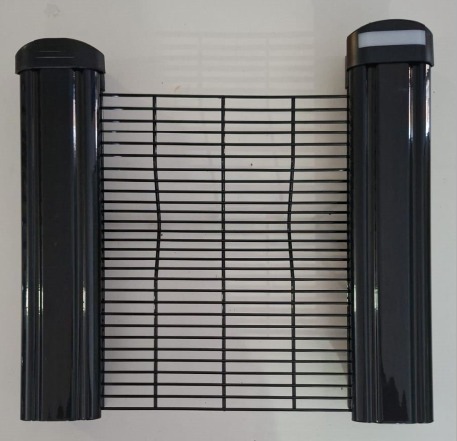

Alternate view of the supplied ClearView mesh and post sample — Alternate view of the supplied mesh-and-post sample.

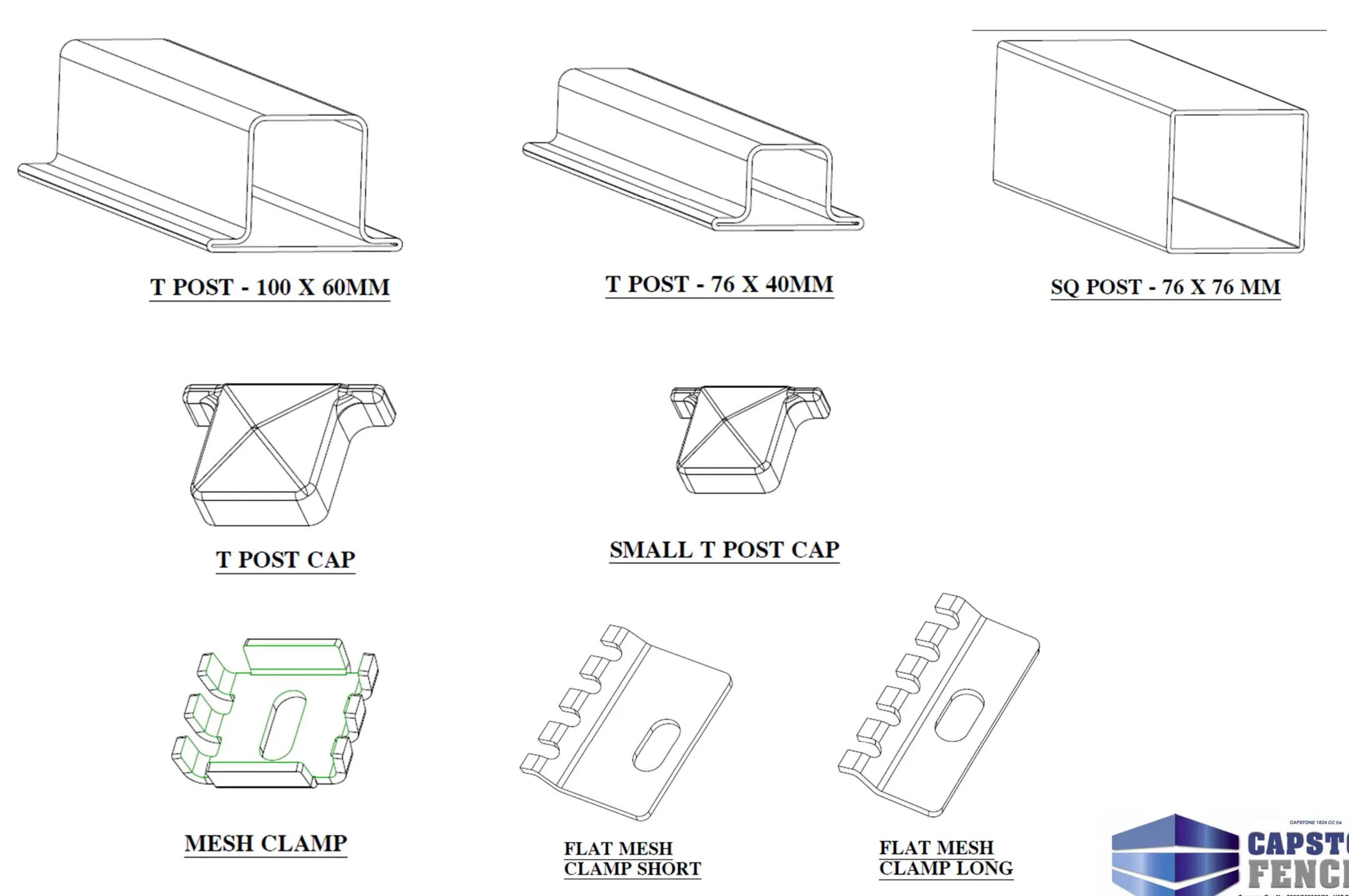

Original Capstone drawing of T-posts, square post, caps and mesh clamps — Original posts, caps and clamps drawing. Open the source drawing

Post system architecture

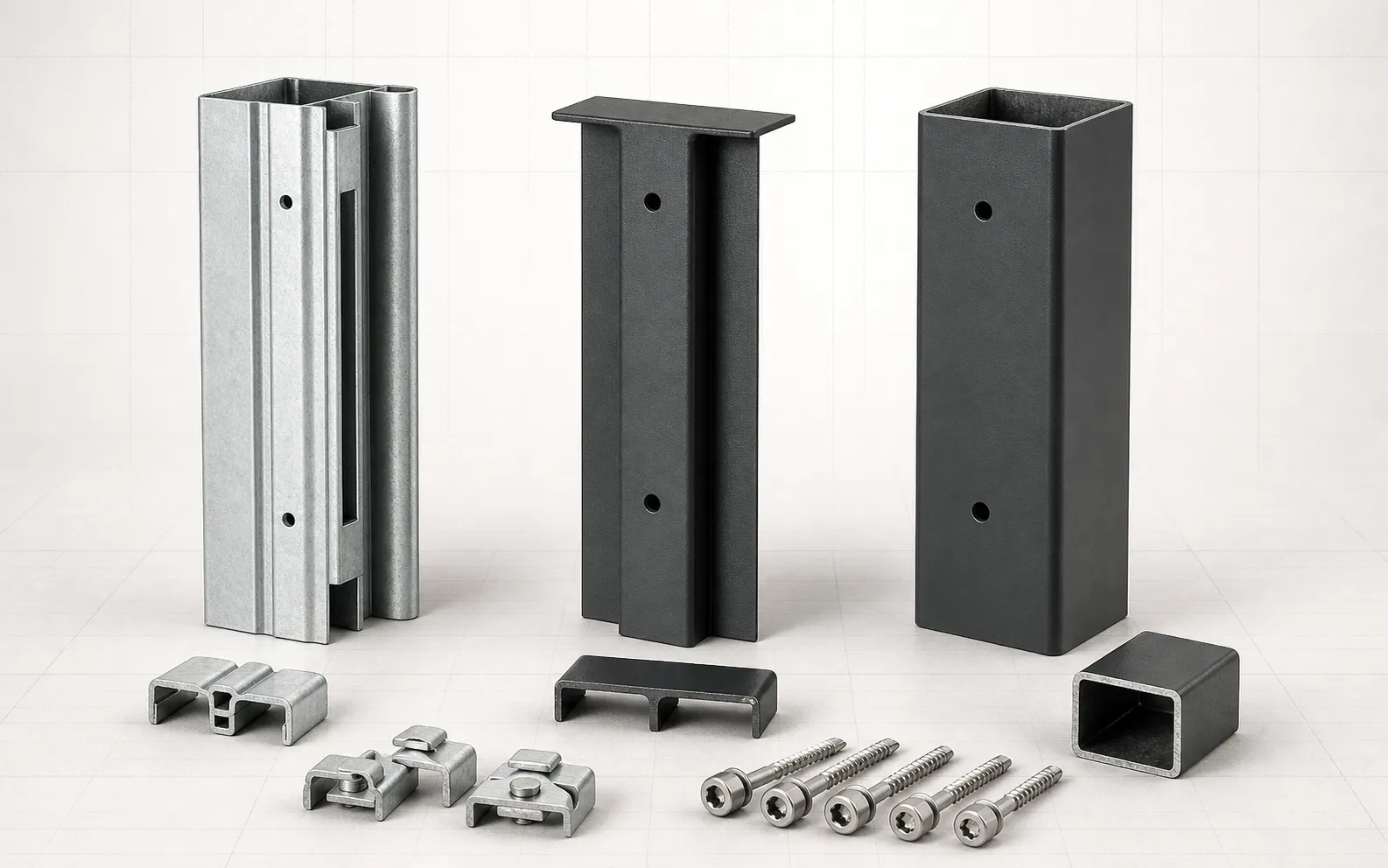

Choose the support profile.

Capstone’s supplied sheets document Evo Guard, T-post and square-tube solutions. Final post selection, length, fixator and foundation are confirmed against the project.

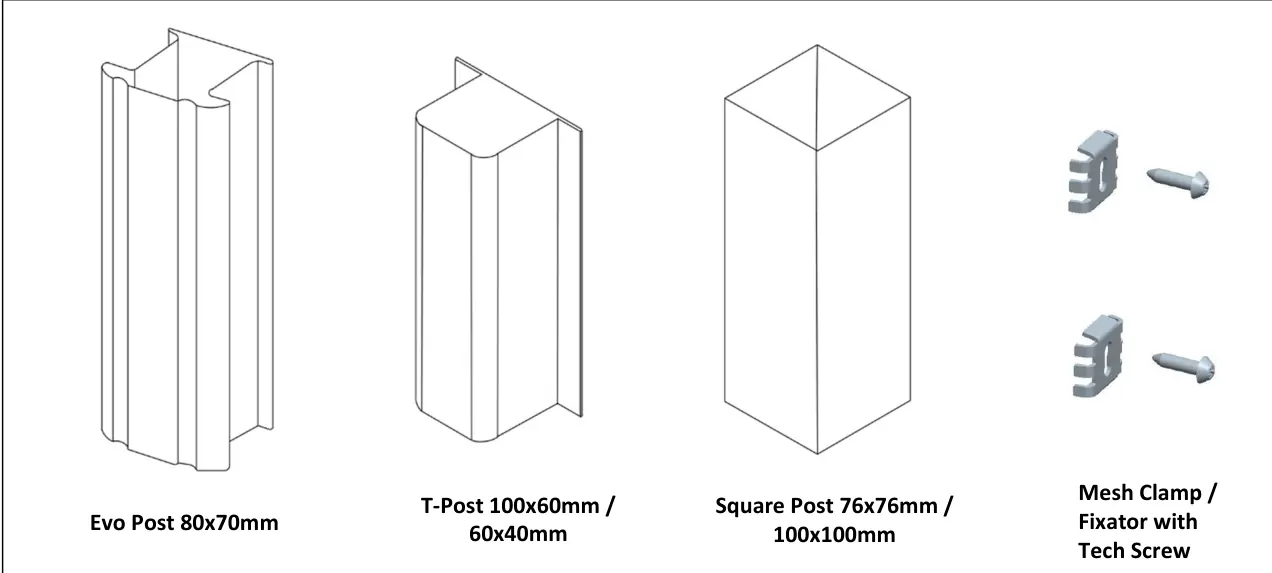

Original April 2026 drawingThe supplied post profiles and fixators.

Compare the profile data below. Open the supplied posts, caps and clamps drawing

CV–P01

Formed security post

Evo Guard · Evo 800

Alu-Zinc-Mag coated steel with c3 anti-corrosion treatment.

Thickness: 2.0–2.5 mm
Profile: 80 mm front · 70 mm back · 70 mm deep · 45 mm fixator space
Lengths: 1.8 m · 2.4 m · 2.7 m · 3.0 m · 3.6 m
Testing: Yield 360–385 MPa · Tensile 455–476 MPa · Gauge length 50 mm · Elongation 28–36%

Download Evo source sheet

CV–P02

Galvanised profile

T-post

The supplied T-post sheet records the following dimensions, material and test data.

Dimensions stated: 100 × 60 × 2.5 mm
Product specification: ISQ 230 – ISCOR
Material description: Galvanised
Chemical treatment recorded: Chrome 6
Galvanised coating: Z275
Product-data thickness: 1.600 mm
Product-data width: 1 225 mm recorded under Product Data; separate from the 100 × 60 mm profile dimensions.
Testing data: Yield 276 MPa · Tensile 366 MPa · Gauge length 50 mm · Elongation 37% · Hardness 59 HRB

Download T-post source sheet

Source distinction: “Thickness: 1.600 mm” appears under Product Data, while “100 × 60 × 2.5 mm” appears under Dimensions. Both entries are retained as supplied; the sheet does not explain their difference.

PG–P01

Charcoal powder-coated square hollow steel tube with its open end visible

Gate + frame profile

Square tube

Hot-rolled welded mild steel, documented for gates, fences, frames and related non-structural applications.

Profile: 100 × 100 × 3 mm
Source standard: SANS 657-1 stated on source sheet
Stock length: Typically stocked in 6 m lengths; this is not a finished installed post length.
Mass: 9.166 kg/m

Download square-tube source sheet

The source sheet lists a 10-year warranty but gives no terms or scope. Confirm the applicable warranty in the quotation. The powder-coated image illustrates a finish; the sheet describes hot-rolled mild steel.

SA / 01

Electro Coil bundle with galvanized razor strip and inner wire rings

Security addition

Electro Coil: source dimensions.

Material sizes below follow the supplied June 2026 Electro Coil drawing. Refer to the original drawing for the coil arrangement, insulators and dimension callouts.

Galvanised stripGalvanised steel: 0.30–0.50 mm ±0.1 mm

Galvanised wireGalvanised wire: 2.4–2.5 mm ±0.1 mm

Strip drawing callouts27.51 · 12.00 · 22.50 · 11.50 · 13.00 · 15.50 mm; pitch 50 mm; radius R2.0. See the source drawing for each measurement location.

Download coil source sheet

Specification control

Project design still matters.

These diagrams interpret Capstone’s supplied technical sheets for web use. Post length, embedment, foundation, coating, gate interfaces, loads, exposure and legal requirements must be confirmed in the project quotation and approved documentation.
