CV-01ClearView system

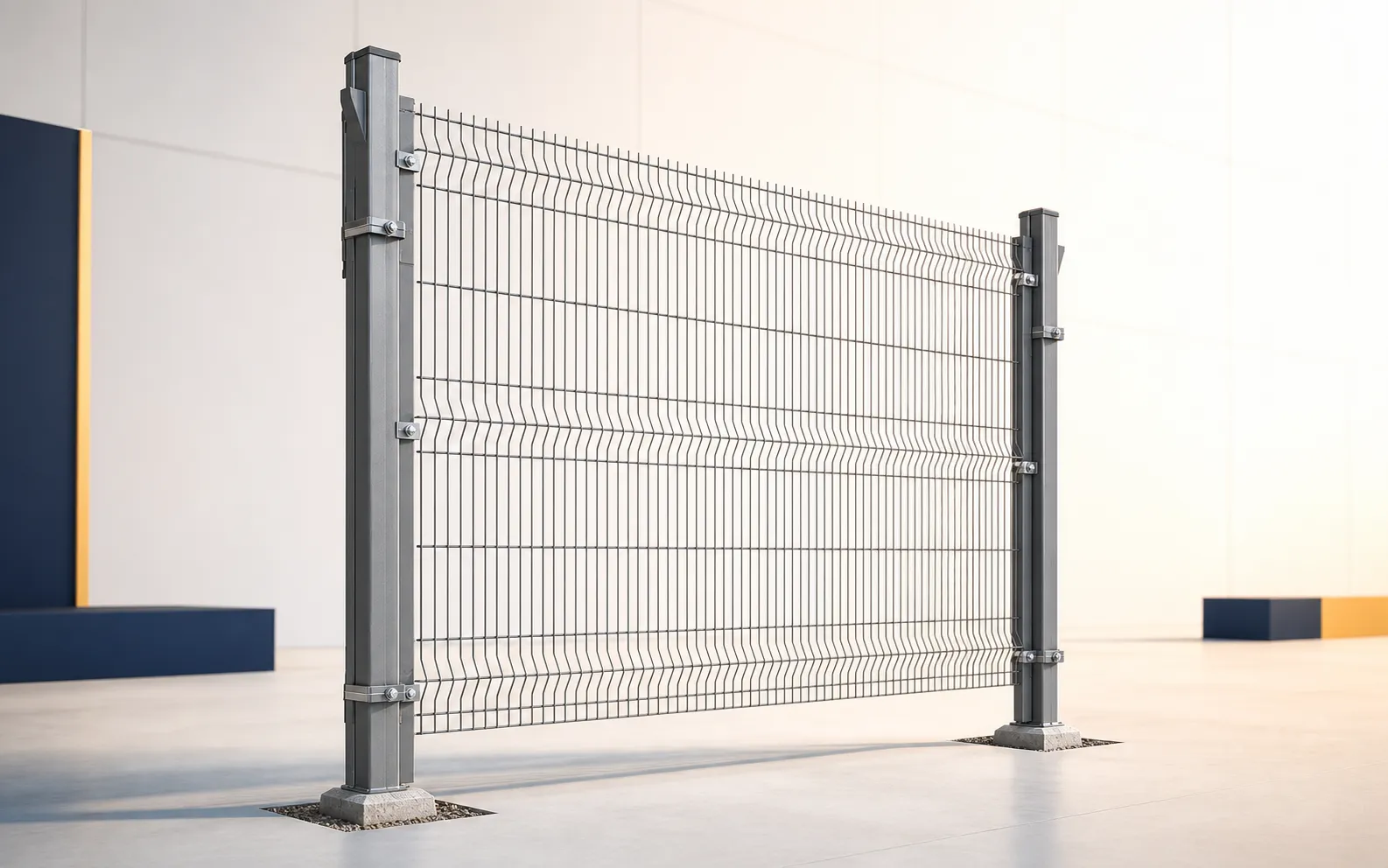

ClearView system
Posts, apertures and panel options
Compare the three mesh apertures, post families, wire choices, coatings and fixator arrangement.
3 000 mm panel3 apertures3 post families
Technical product library
Real products. Readable technical data.
Product references, original technical drawings and downloadable source sheets for Capstone’s ClearView fence, gate and concrete palisade fencing systems.
10
product references with original technical downloads
ClearView fence + additions
Panels, posts and perimeter additions.
See the supplied product samples and details reproduced from Capstone’s technical sheets. Compare the specifications below and download each original document for the complete drawing.
CV-02ClearView post
From the supplied technical reference ClearView post

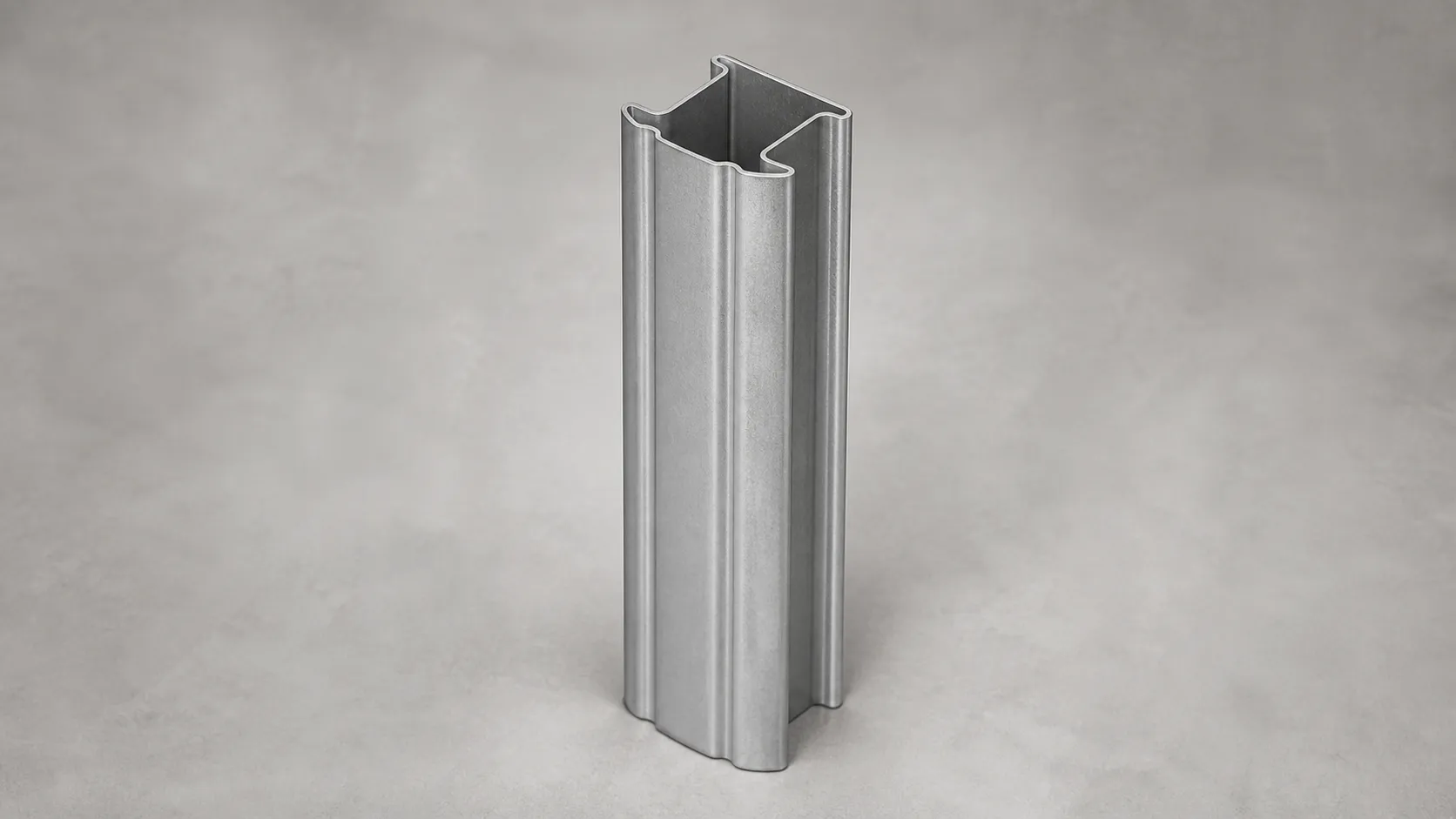

Evo Guard post
Profile dimensions, coating system, available lengths and mechanical test figures for the Evo 800 post.
80 × 70 × 70 mm2.0–2.5 mmC3 treatment45 mm fixator space
CV-03ClearView post
ClearView post
T-post
Galvanised T-profile data with nominal dimensions, Z275 coating and recorded mechanical test values.
100 × 60 × 2.5 mmZ275Yield 276 MPa
Thickness to confirm: the source sheet lists 1.6 mm material and 2.5 mm in the nominal dimensions. Please confirm the required post thickness with Capstone.
PG-01Posts and gates
Posts and gates

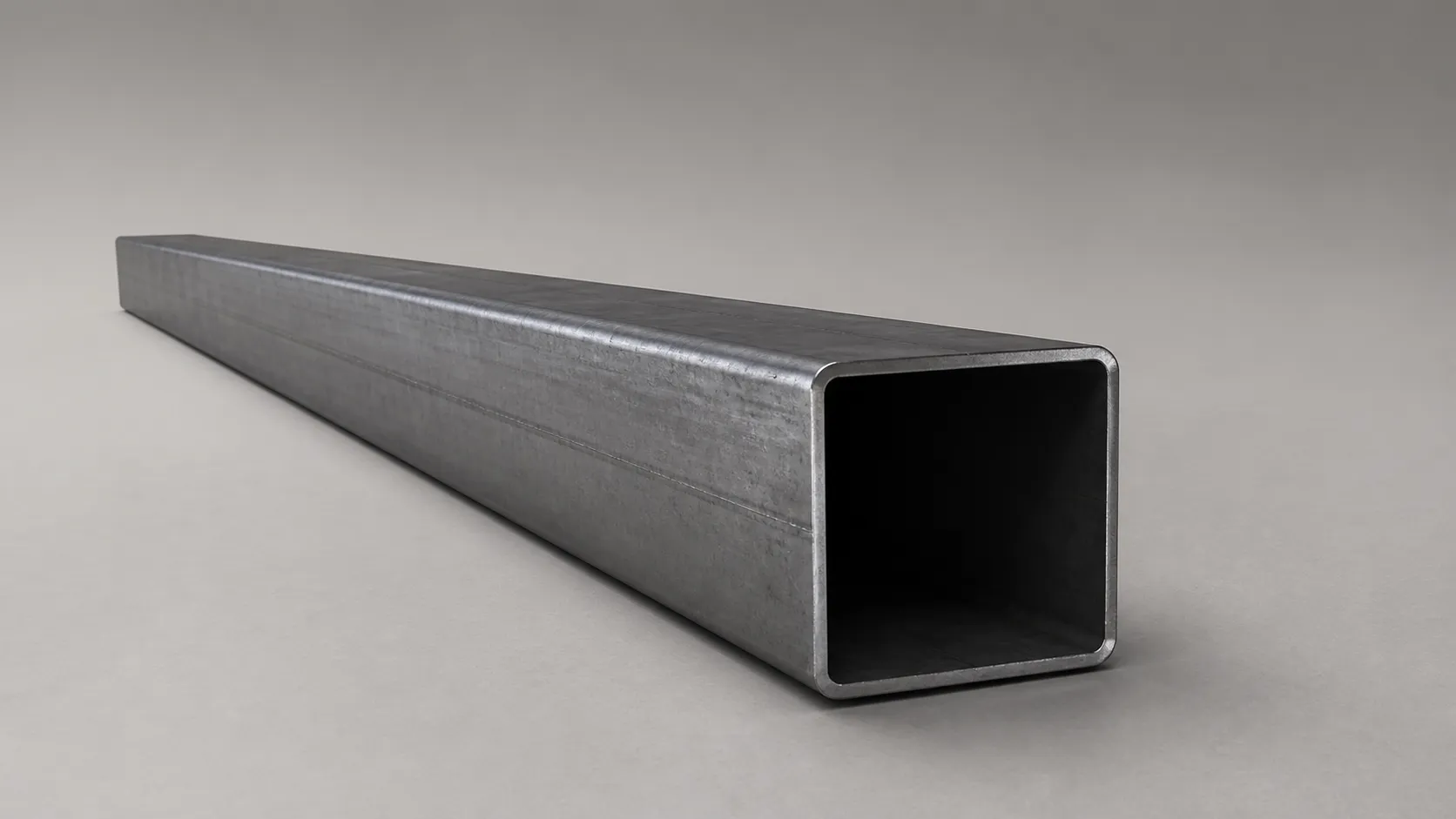

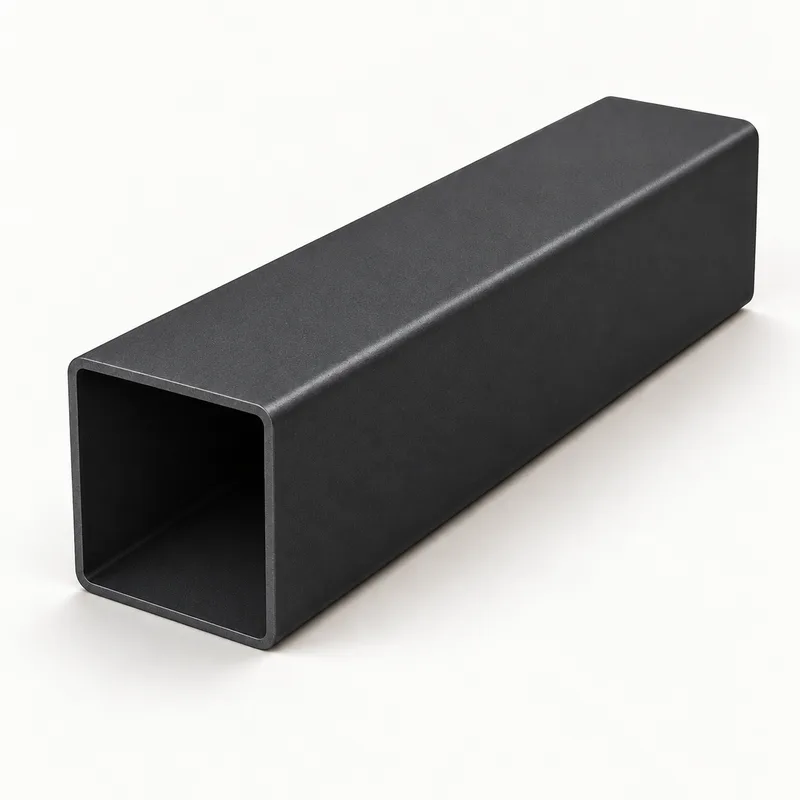

100 × 100 × 3 mm square tube
Hot-rolled welded mild-steel hollow section used in gates, fence frames and related applications.
100 × 100 × 3 mm9.166 kg/m6 m stock length
SA-01Security addition
Security addition

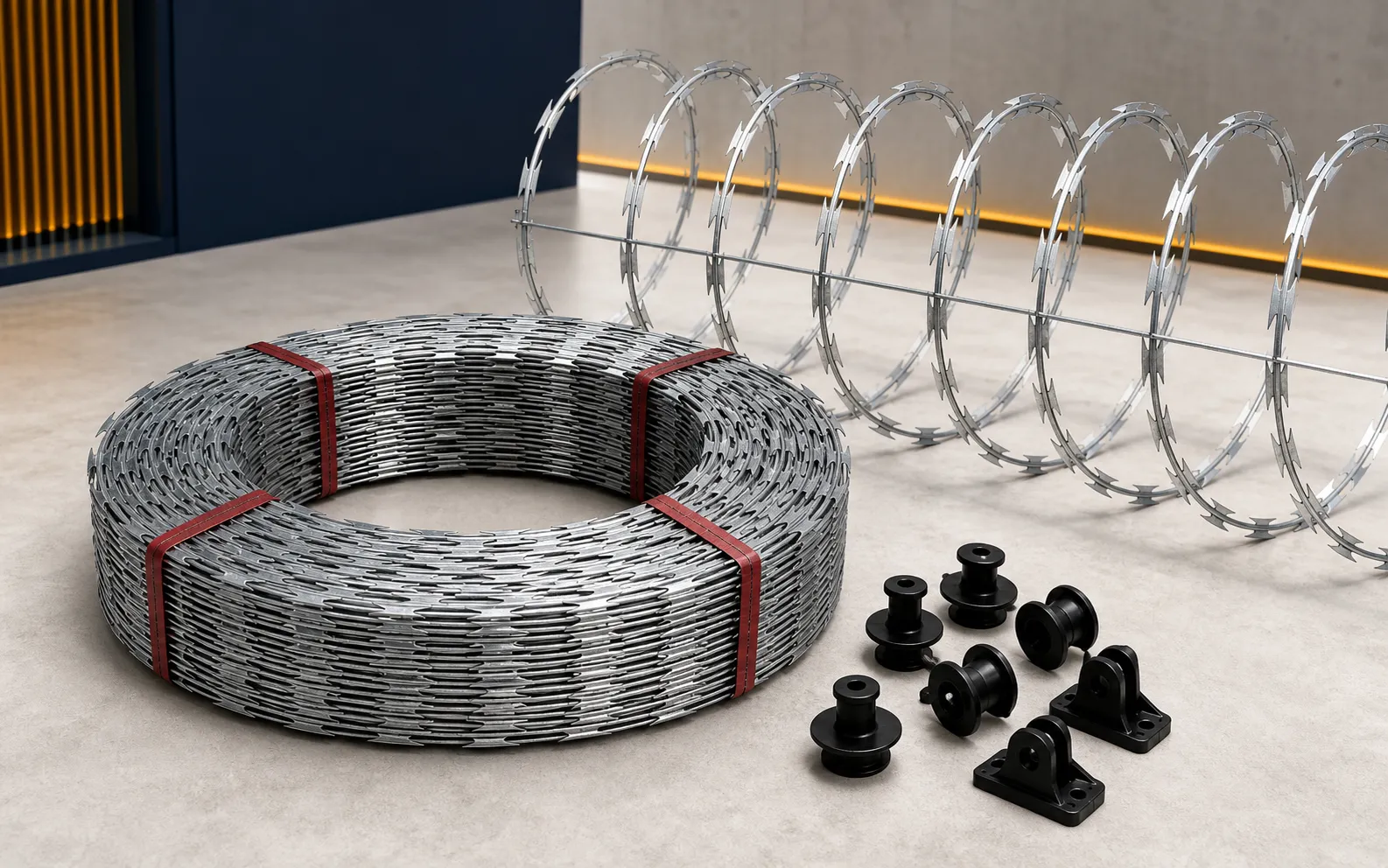

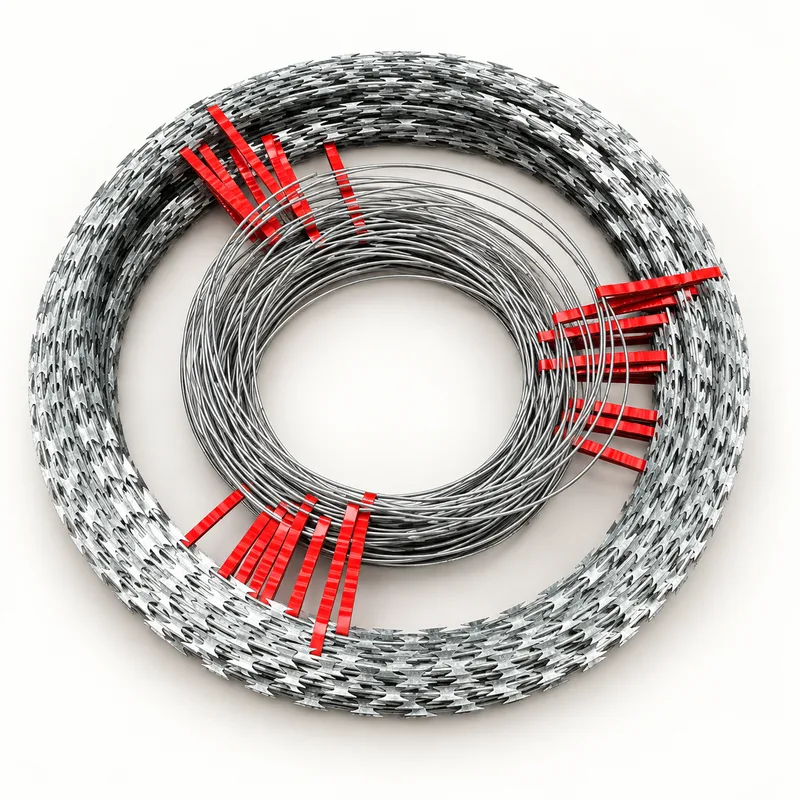

Electro coil
Galvanised coil-strip and wire dimensions, profile geometry and the roll lengths recorded in the June 2026 drawing.
0.30–0.50 mm strip2.4–2.5 mm wire8 / 10 / 15 m
Concrete palisade fencing
Four systems. One controlled product story.
Compare the 1.8 m and 2.4 m configurations, then review how reinforcement, foundations, plinths and flatwrap fit into the complete assembly.
CP-18Concrete palisade
Concrete palisade

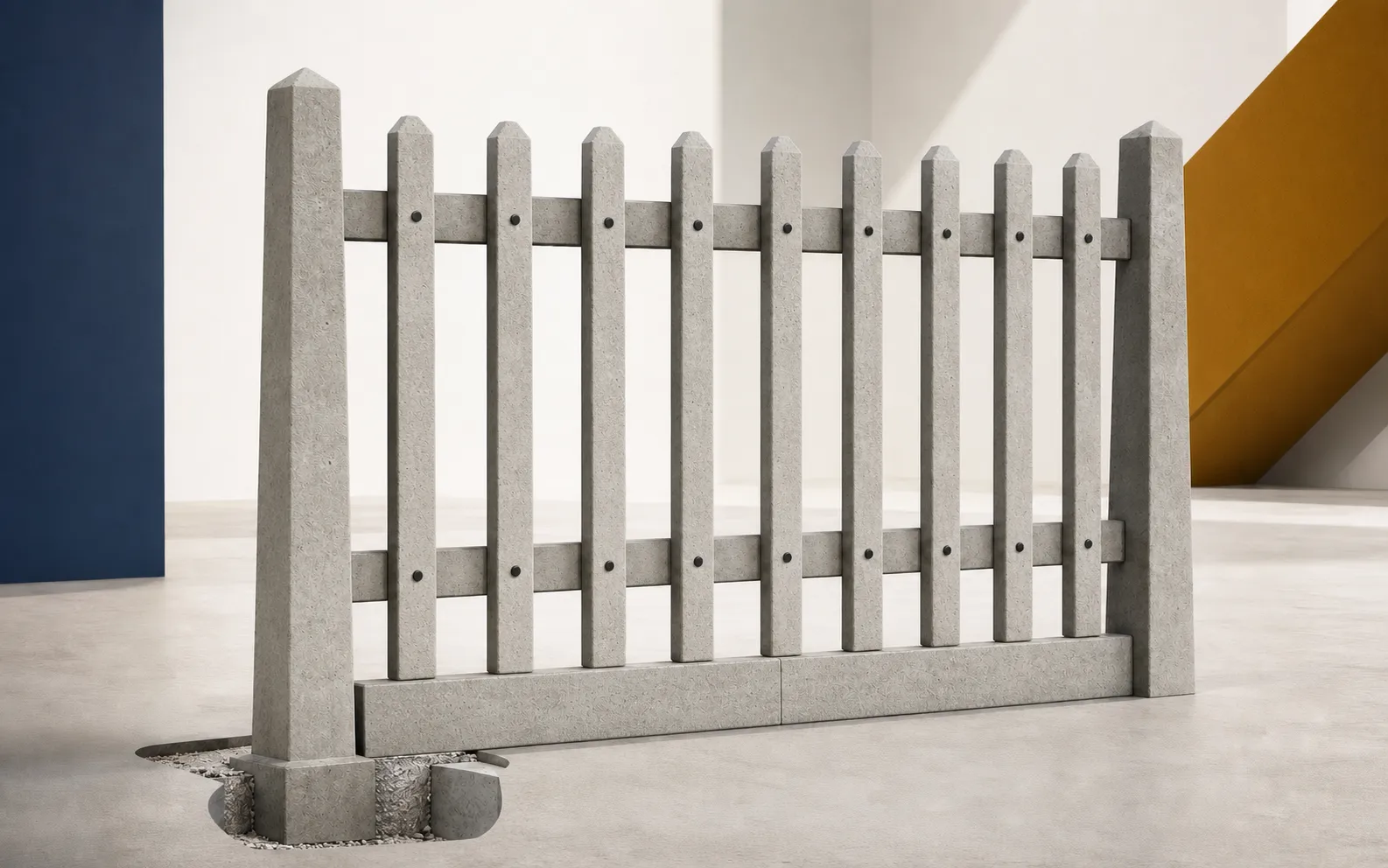

1.8 m standard system
Reinforced 1.8 m fence with nine pales, two crossbars and a 2.4 m overall post length.
1 800 mm fence2 400 mm post9 pales / 2 m
CP-18RConcrete palisade
Concrete palisade

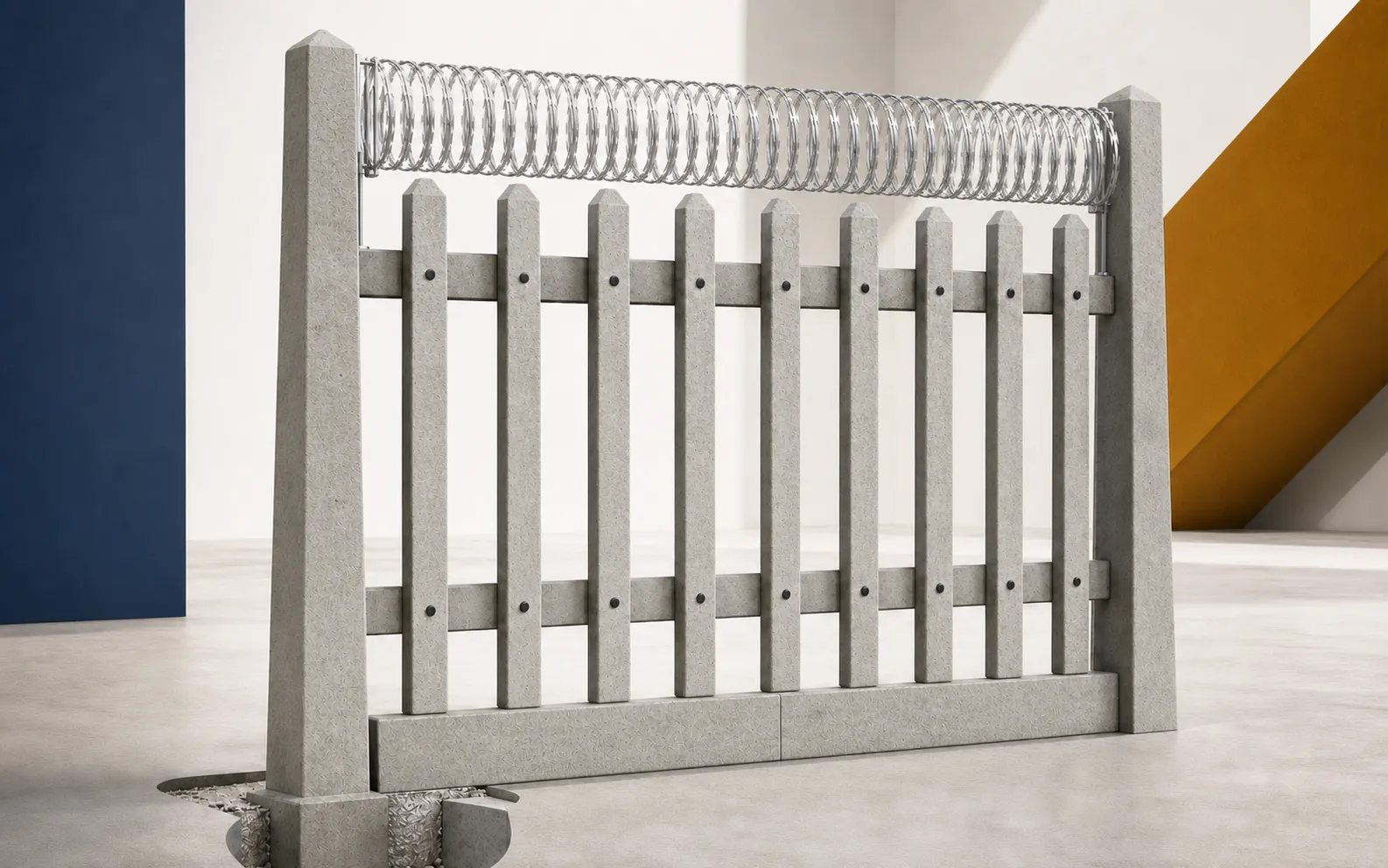

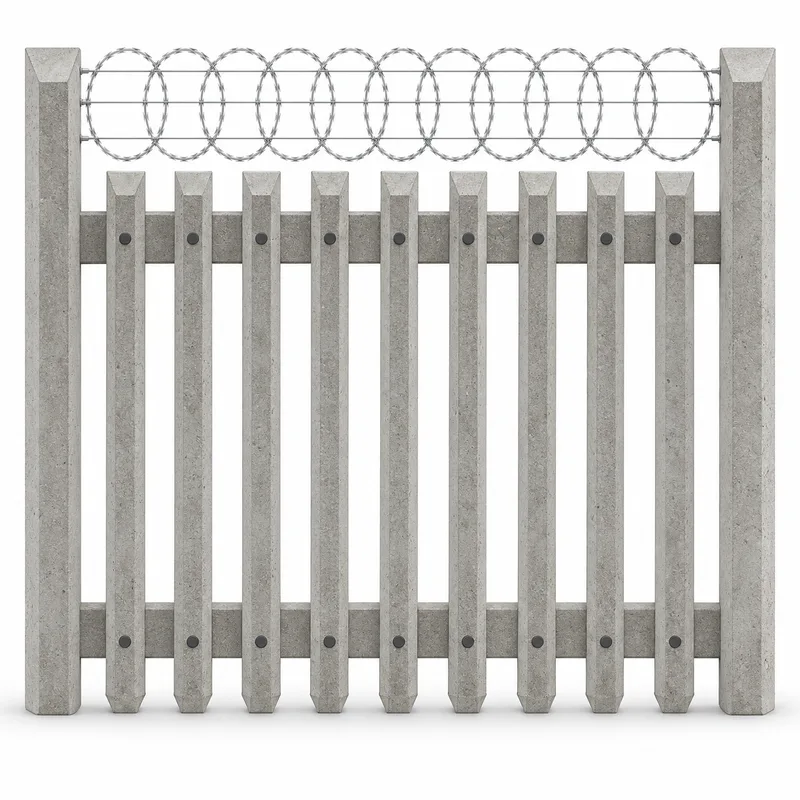

1.8 m + razor flatwrap
The 1.8 m reinforced system with extended posts and a 500 mm razor flatwrap addition.
1 800 mm fence2 900 mm post500 mm flatwrap
CP-24Concrete palisade
Concrete palisade

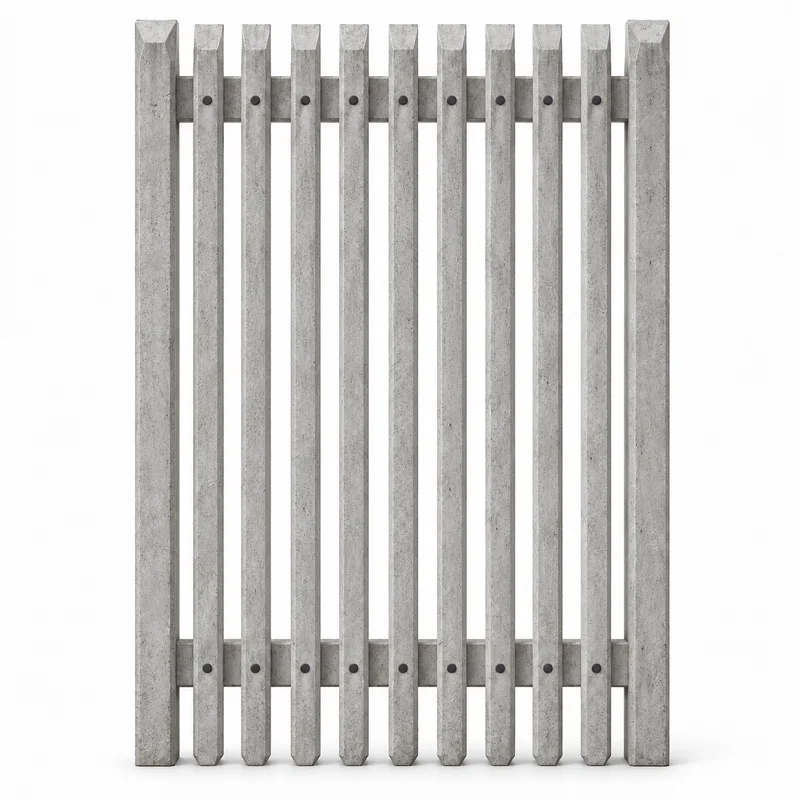

2.4 m standard system
Reinforced 2.4 m fence using the same nine-pale, two-crossbar section format.
2 400 mm fence3 000 mm post9 pales / 2 m
CP-24RConcrete palisade
Concrete palisade

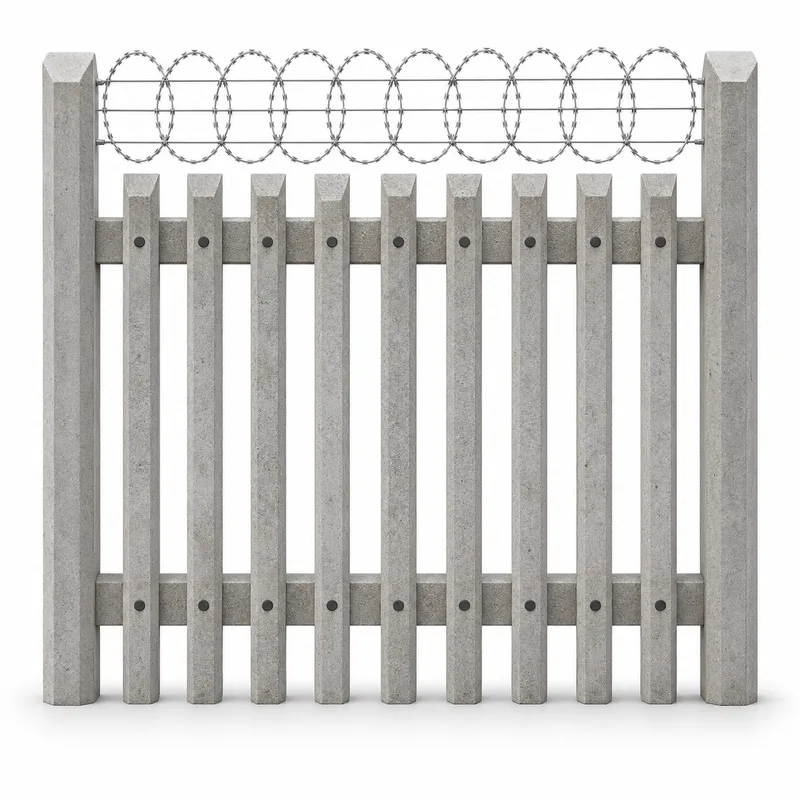

2.4 m + razor flatwrap
The taller concrete system with extended posts and 500 mm razor flatwrap.
2 400 mm fence3 600 mm post500 mm flatwrap
CP-D01Concrete palisade
From the supplied technical reference Concrete palisade
Flatwrap isometric detail
A quotation-stage isometric showing the palisade assembly, 4 m flatwrap support interval and standard footing basis.
Support every 4 m500 mm flatwrap450 × 450 × 600 mm
Document control
Use the data with confidence.
Website diagrams make the information easier to understand. The signed quotation and approved project documents still define the system supplied.
- 01Match the configurationCheck that the sheet matches the height, post, coating and addition recorded in the quotation.
- 02Control the revisionRecord the source date when a document becomes part of a tender or contract.
- 03Resolve conflictsClarify differences between web summaries, drawings, specifications and project requirements before manufacture.
- 04Approve in writingDo not infer certification, warranty or project suitability from a generic product description alone.
Project enquiry
Need a technical submission?
Send the product, height, location and client or tender requirements. Capstone will identify the relevant sheets and quotation-stage details.
